Hand engraved in a Gothic Roman sculpted deep relief engraving on a brushed background strong and handsome!
Details:
Made from 14 karat yellow gold on an antique cushion shaped table,
Dimensions are 14 by 16 mm cut
Script is Gothic roman-style interlocking monogram cut so the letters lay in front and behind each other and intertwine.
This die struck 14K Yellow Gold Signet Ring has a custom made sculpted table in the shape of the clients Shield, slightly radiused to widen the presentation and maximize the size of the engraving surface, while adding dimension and light play to the engraved surface. It has been engraved in high relief, as well as deeply recessed Intaglio characters to give it depth and dimension, while contrasting background patterns delineate the colors of the elements of the shield. It is framed with a raised millgrain border to complete the presentation, a strong and handsome, one of a kind heraldic statement.
This image with the pencil present helps to show the scale of the lettering in the book, and of the engraving. Two lines of text will fit on the width of the pencil lead!
This pure Palladium, Sapphire and Diamond Engagement-Wedding Band Suite was inspired by the crystal blue sky and ocean of New Zealand, and the purity and diversity of it’s Fern population, specifically the Silver Fern, featured prominently on this island nations flag. This couple fell in love there, and wanted to remember and celebrate their families island home, and their passion for life there. This labor of love is titled “Love Springs Eternal”. Like a fresh mountain spring, Sapphires cascade from a crack (saw kerf) on the inside of the band, flowing into the hand pierced, sculpted stone set gallery of the feature diamond, a 1.76 Ct. antique cushion cut diamond belonging to their family. Small fern fiddles set with Sapphire and Diamond Melee unferle in small clusters of six, as diamonds flow from the top of the band at it’s splitting point on either side, to fall off to the sides of the shank, gently disappearing into the main settings fern motif. The Silver Ferns engraved on the outside of the bands grow in a gentle curve from the split in the shank, in mirrored opposition to each other, continuing the gentle movement of the upper band’s bead set arms. Thirteen stones occupy each “arm” of the shank, sharing 7 openings on the inside of the ring. Drawing on oriental influence, small circular swirling clouds separate the fern motif, as small diamonds twinkle between them, like the stars so brilliant in the crisp New Zealand sky. This ring set was fabricated from 1 piece of 2.5 x 5.00mm flat wire 5 inches long. It holds a total of .68 ct. top grade Ceylon Sapphire, and .45 ct. VS -SI dia. melee on the arms. Surrounding the feature stone are Russian make melee ,VS-SI from Joseph A. Dia., their make playing beautifully off the antique cut of the main stone, a treat to work with, very lively, totaling. .62 ct. Forged, fabricated, hand engraved.
Shown disassembled are the badly worn, solder laden pieces of the original hand made basket setting, gem set table, and worn out shank for this Old mine Diamond and Saphire Art Deco Revival ring. Likely originally constructed prior to the turn of last century, the client requires a hinged shank to fit past her knuckle. To supply the structural integrity required for the band to work properly, the new like dimensioned, hand fabricated setting will display a motif derived from the original scroll work in the open pierced gallery. All the design details will be laid out on the new framework in white water color and pencil prior to being fully engraved, chased and stippled in high relief.
The hand fabricated setting has been completed. The Pineapple and Fan design running down the sides of the shank are here being cut into the top portion on each side. An emerging leaf at the border will complete the background and create a sense of transition to the surface. The designs chosen for this ring have classical roots, creating a sense of time and technique in design reminiscent of past centuries, when a Jeweler was expected to indeed, be a Renaissance man.

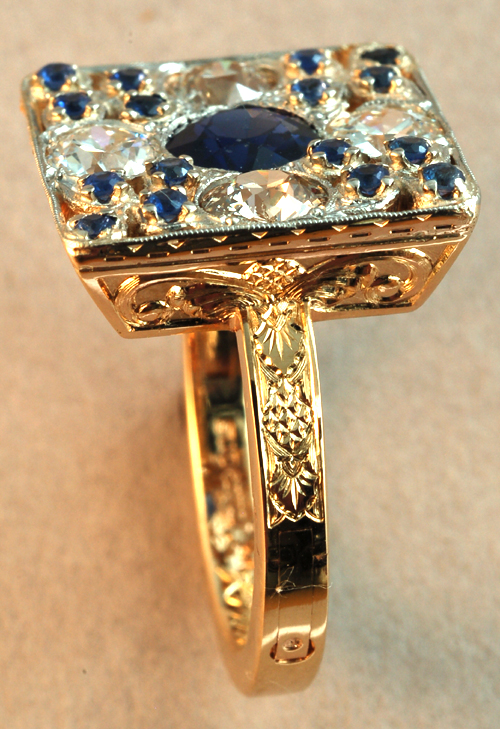

This is the fully restored ring in it’s amazing detail.
The Engraving of a Silver Flatware Service starts with the Master Design being drawn onto the sample piece of silver. From there the engraver determines the tool cut and texture desired for the finished design. The client may choose to have a bright mirror like finish, in which case the graver is sharpened to a high polished cutting edge. A fine diamond wheel of 600 grit would produce a satin like cut, a 1200 grit wheel a much finer silky satin finish, etc. After client approval, this piece will transfer identical designs scaled to each piece in the service, completing the work.

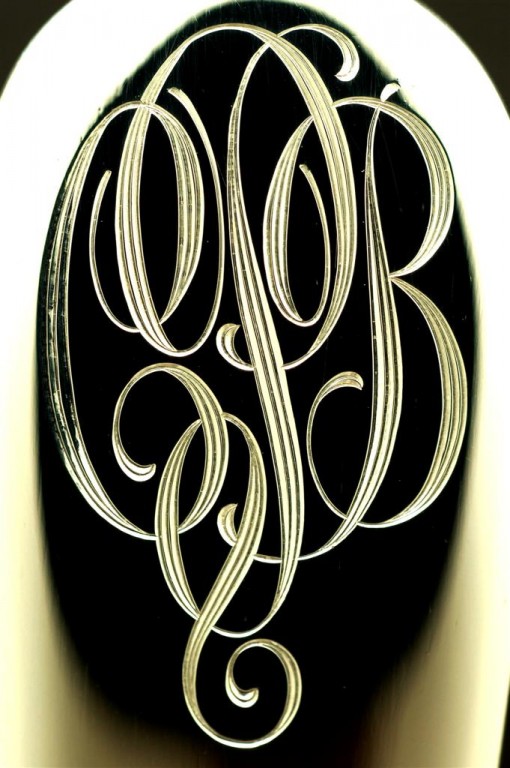

This is the finished Master Monogram, # 83 from the Engraving Charts. This is refered to as an “Interlocking Script Cypher”, last initial larger and in the middle. In this instance a small scroll element travels downward from the center character, to start the eye moving down the service piece, as requested by the client. When cutting a “threaded” monogram, it is imperative that the threads diverge and converge in a even and gracefull manner, consistent in depth and width, fluid in line and composistion. Having the graver emphasize the passing of stem elements in front of and behind each other further reinforces the illusion of three dimensionality, a most convincing “icing on the cake”.
This hand engraved Tiffany Persian Flatware exhibits a very detailed #471 Script Cypher.
This Sterling Silver tie tack-lapel pin was made by the request of a son for his father, to celebrate their pride of Cuban heritage, and to honor their beautiful island Homeland. Hand Engraved in bas relief, sculpted, chased, incised, with a millgrain border.
Interlocking Script Cypher

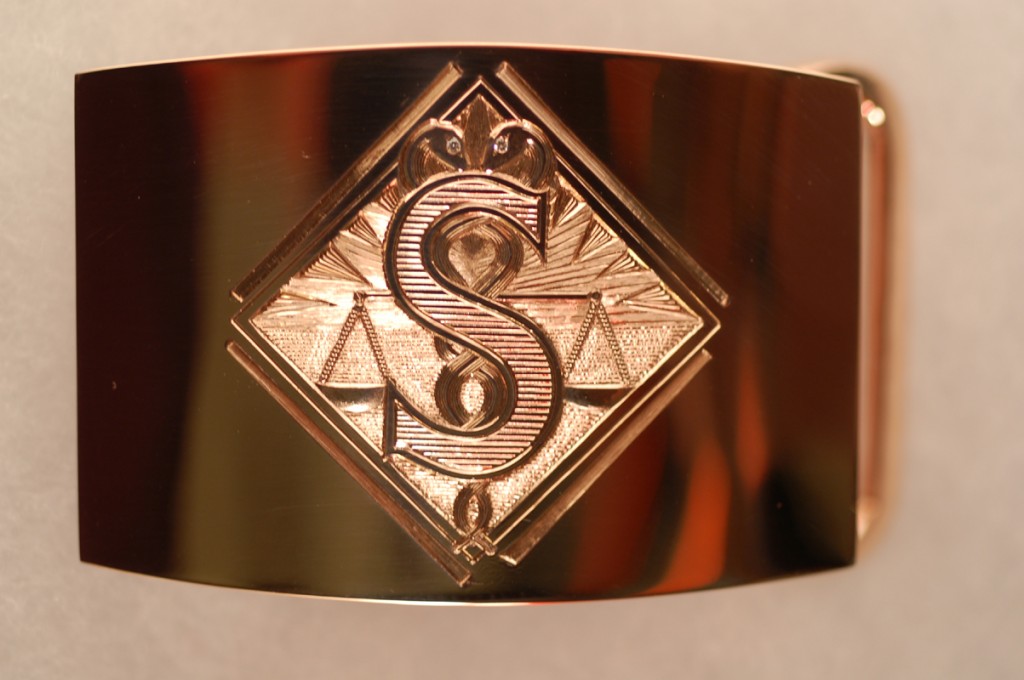

This is a self tensioning bar clamp style buckle, the keeper an integral part of the buckle’s hollow gallery, where the leather sits tight against the wearer. This type of buckle does not require holes in the leather, it prevents unsightly stretched or torn holes from detracting from the overall presentation. It is perfect for the more exotic and fragile types of leathers. This crest, carved in three dimensions is an interpretation of the clients design. I tried to render the “S” as floating in the foreground space, with cadeuseus-wound snakes supporting the scales in equilibrium (notice the screw heads at the connection points of the chain to the fulcrum bar) These, like the diamond set snakes eyes are 7/10ths of a millimeter in diameter. As the sun sets over a shimmering golden sea, the reflections of it’s ray’s play with the diminishing light of day.
The second photo shows the “Evening shadow’s cool embrace.” I tried to anticipate the play of light and form that might allow for the one engraving to capture both times of day.
Custom made 14ky gold mans signet ring. This massive, classic oval tabled ring measures 20x25mm: on it’s engraved surface, the table thickness is 3/16″ at it’s thinest point, and the total weight is 40.1 grams, or 1.29oz.. Constructed with a squared shoulder shank to help prevent rollover while being worn, it has been engraved with a modified Pearl Roman monogram. This style of engraving is rather deep, 2 full width passes of a square graver carve a sculptured stem and serif design reminicent of the Roman stone lettering of antiquity. It is seen here “shaded” with the addition of some scrolled border elements to help compose the monogram and frame it within the surface of the ring. This form of cut lends itself nicely to creating a wax seal as well, and retains it’s sharp edges and distinct character for many generations, a personal favorite.
This “Portrait” pendant was commissioned by a gentle man for his native Hawaiian bride. The symbols chosen are a reflection of her friendly, welcoming nature, her love for family and island traditions, and the deep personal bond she shares with her husband. This piece was a joy to make, and says it all.
This is an example of a custom “symbolist” diamond engagement ring, forged out of 18k
red & royal yellow golds with a platinum tube setting.
Custom Ring Details:

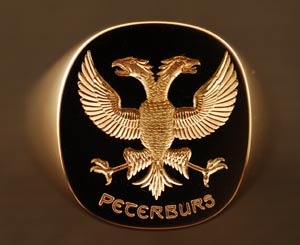

Peterburs double head eagle crest cut “to show”, antique cushion signet ring
Hand Engraved Silver Set

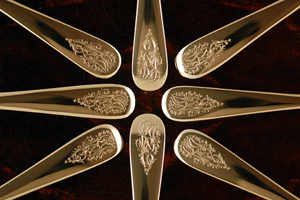

This is an example of hand engraved spoon handles from a large silver set created for a client.

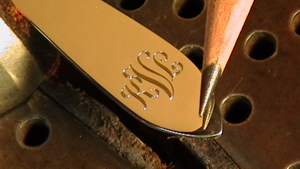

This standard #2 pencil gives reference to the fine detail of the spoon engraving.

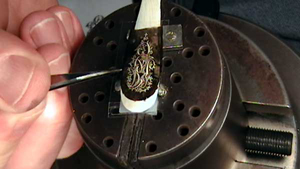

George is cutting the layout of a fancy 3 letter monogram in the leaf and vine style.
This 14x18mm Die Struck 14k Signet Ring is engraved with a sculpted victorian style “M”. By deeply bright cutting and faceting the character’s interior to contrast the brush finished surface of the ring, a dramatic contrast of light and energy results. Characters engraved in this manner also make fine wax seals.

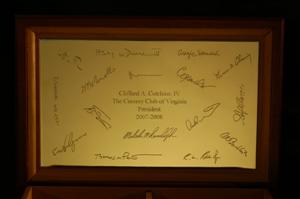

Commissioned as a commemorative gift by members of the club, this German Silver plate is hand made, chamfered and polished to fit inside the lid of it’s cedar lined humidor. The Hand Engraved central inscription, executed in “Constantia” Roman block, addresses the formality of the occasion, while the scaled, composed, Hand Engraved Signatures emphasize the personal gratitude of the givers. A truly classic presentation.

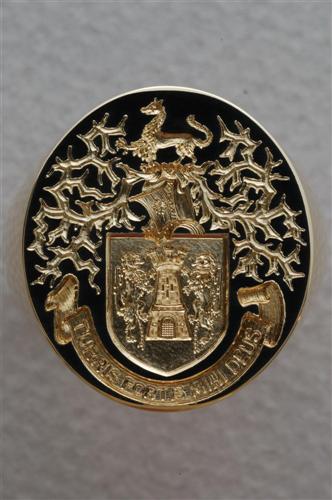

Each and every detail is hand engraved to perfection. Show quality custom gold jewelry design is where George’s talent’s really shine. Hand made rings can be cast in white gold, yellow gold, and silver. A hand engraved coat-of-arms or hand engraved family crest ring is the perfect unique jewelry gift that will be treasured for a lifetime. You can rest assured that your gift is a one-of-a-kind masterpiece individually designed to fit the character and style you desire. Adding a custom inscription can help remind the wearer of your special bond.
Forged out of 22K yellow and 18K royal yellow gold, this pearl, ruby and diamond necklace is a portrait of mans impact on our Great Lakes. A mother fish nestled beneath water starwort patiently waits for the hatching of her fry while gentle bubbles of oxygen rise about and cling to her tidal sanctuary. Their future however, is imperiled by the nutrient consuming Zebra Mussel, clinging to this sectional free floating plant. Introduced by ballast water into the Great Lakes, its presence will challenge their survival and ultimately Lake Michigan’s food chain.
This custom necklace incorporates:
Rubies
Gold
Diamonds
The “serpent in the Tree” ring is actually a symbolist “intaglio” monogram “cut to seal” as a stationary die. The ring is a reproduction of an antique signet in my collection, produced in 14k yellow gold, given by the woman who commissioned the monogram on the ring to her husband as a wedding ring.
The symbols are the Tree (the letter k engraved backwards) and the Serpent (the letter S engraved backwards) representing his initials, while elements of the design (# of plates on the serpents chest, and the 4 round scales on his back) represents two of the numbers of the anniversary of their meeting. The third # of that occasion is hidden in the wax impression the image makes when pressed into stationary wax. Of the 4 round disks on the serpents back, one is a ruby, (lapped free hand on a diamond platen, .032 in diameter which becomes a depression when the seal is produced, creating three raised balls with the one depressed ball, a sequence of binary code (as I was told) that he works with, which represents the third # of the anniversary.
The surface of the engraving is on a flat “table” that measures 11×14 mm or so and the ring was size ten.
